RV Campsite Leveling: Stabilize Without Unsafe Shortcuts

RV Campsite Leveling: Stabilize Without Unsafe Shortcuts

Quick answer

Level an RV with equipment rated and approved for that specific vehicle, following the manufacturer's sequence. Inspect the campsite, keep people clear, place blocks on firm ground, level side to side and front to back as directed, chock the wheels, then use stabilizers only for their intended purpose. Never rely on stabilizer jacks as lifting devices unless the manufacturer explicitly says they are designed to lift.

This guide is for recreational vehicle users at U.S. campgrounds. RV designs differ widely: travel trailers, fifth wheels, truck campers, vans, and motorhomes use different systems. Your RV, jack, leveling-system, and campground instructions override any general sequence below.

Leveling is not stabilizing

Leveling changes the RV's position relative to the ground. Stabilizing reduces rocking after the unit is already positioned and level. Confusing the two can overload equipment, twist the frame, damage slide mechanisms, or create an unstable setup.

Some motorhomes have manufacturer-designed hydraulic or electric leveling systems that can lift designated points. Many trailer corner stabilizers are designed only to contact the ground and reduce movement. Labels can look similar, so identify every component and its rated purpose in the owner's documentation.

Leveling supports comfort, drainage, door operation, and certain appliances, but “perfect” is not a reason to exceed equipment travel or build a precarious stack. Stay within vehicle and appliance tolerances.

Check the site before positioning

• Confirm the assigned pad. Follow site boundaries, orientation rules, utility layout, fire separation, and host directions.
• Walk the surface. Look for soft soil, holes, severe slope, overhead branches, drop-offs, hidden curbs, and obstacles.
• Check clearance. Account for roof equipment, awnings, slides, steps, tail swing, tow vehicle, and utility pedestals.
• Plan the exit. Avoid a setup that traps the vehicle or requires moving equipment across traffic.
• Locate helpers safely. Agree on hand signals or radios. The spotter should remain visible and outside the vehicle's path.
• Inspect equipment. Use intact, rated blocks, pads, chocks, and controls. Do not use firewood, loose stones, bricks, or improvised scrap.

If the pad is too steep, unstable, flooded, eroded, or outside the capability of the vehicle and equipment, ask the campground for another site. Do not create a tall platform to force an unsuitable site to work.

A controlled leveling process

1. Read the vehicle procedure. Confirm parking-brake, transmission, engine, suspension, slide, and leveling-system requirements.
2. Measure the slope. Use the built-in indicator or a suitable level at the manufacturer-recommended reference point.

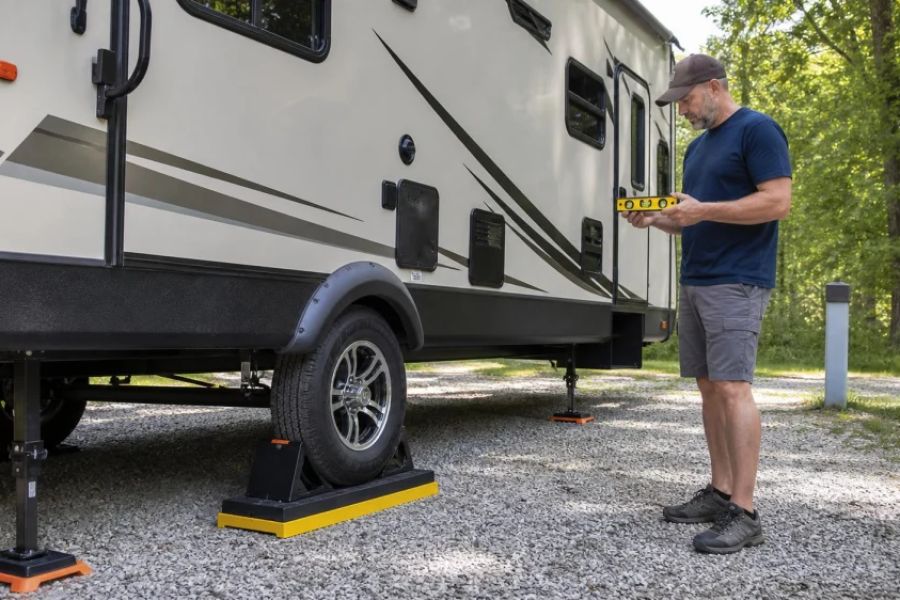

3. Correct side-to-side position. For a trailer using drive-on blocks, place the approved support in the tire path and move slowly with a spotter. Keep the entire tread supported as required.
4. Stop and secure. Apply the parking brake and chock wheels according to the RV procedure before unhitching or working around the unit.
5. Correct front-to-back position. Use the tongue jack, landing gear, or designed leveling system in the specified sequence.
6. Recheck. Confirm stability, clearances, tire support, block position, and the level reading before extending slides or connecting utilities.

Automatic leveling reduces manual steps but does not remove the need to inspect the ground and clearances. Watch the system, keep people away from the RV, and stop if a jack sinks, a tire lifts contrary to instructions, the chassis shifts, or an error appears.

Stabilize after the RV is level

Place stabilizer pads on firm ground when recommended, then extend the stabilizers only until they make appropriate contact and remove movement according to the manual. Excess force can raise or distort the frame. Recheck doors and slide clearances after stabilization.

Soft soil can settle after rain or repeated movement. Inspect pads and chocks during the stay without crawling under the vehicle. If the unit shifts, retract and reset the system using the full manufacturer procedure rather than forcing one stabilizer farther.

Wheel chocks reduce rolling risk but must fit the tire and ground conditions. For trailers, chock before disconnecting from the tow vehicle. A parking brake does not replace chocks where the procedure calls for both.

Unsafe shortcuts to avoid

• Do not stack loose or damaged materials into a tall, narrow tower.
• Do not position hands, feet, or a spotter in front of or behind a tire while the RV moves.
• Do not crawl beneath an RV supported by leveling or stabilizer equipment alone.
• Do not exceed jack travel, block ratings, tire support requirements, or slope limits.
• Do not extend slides until the vehicle procedure permits it.
• Do not use stabilizers to change a tire or support service work unless explicitly designed and approved for that operation.
• Do not ignore a hydraulic leak, bent component, unusual noise, sinking pad, or system fault.

Departure checklist

1. Bring in awnings, antennas, steps, and slides according to the RV checklist.
2. Disconnect and store utilities safely.
3. Retract stabilizers and leveling jacks completely; confirm indicator lights.
4. Hitch and verify the connection before removing trailer chocks, using the required sequence.
5. Collect every pad, block, and chock.
6. Walk around and above the vehicle for clearance.
7. Test brakes, lights, mirrors, and the breakaway system where applicable.

Frequently asked questions

Can I lift the RV tires off the ground to get level?

Only if the RV and leveling-system manufacturer explicitly permits it for that model and situation. Lifting tires can affect stability, braking, and suspension. Follow the exact manual or choose a more suitable site.

Are plastic leveling blocks safe?

They can be when intact, rated for the load, compatible with tire size and ground, and used within their stacking instructions. Inspect them for cracks and deformation before each use.

Why does the RV still rock after leveling?

Leveling corrects angle; stabilizers reduce motion. Check that stabilizers are deployed correctly, the ground is firm, wheel chocks are secure, and no component has settled. Do not overtighten.

Should I level before connecting utilities?

Usually positioning and leveling come first so connections are not strained as the RV moves, but follow the campground and vehicle sequence. Confirm reach before final setup without connecting prematurely.

What if an automatic system shows an error?

Stop the cycle, keep people clear, and consult the specific system manual. Do not repeatedly reset or manually force components without understanding the recovery procedure.

Sources and evidence notes

This article reflects common RV setup principles: inspect the site, use rated supports, distinguish leveling from stabilizing, chock wheels in the correct sequence, keep people clear, and follow manufacturer-specific limits. Equipment design and procedures vary substantially, so the manuals for the RV and installed system are the controlling references.

Next steps

Before the next trip, identify every jack, stabilizer, pad, block, and chock you own. Read the RV and system procedures, inspect ratings and condition, and practice on firm level ground without time pressure. At camp, reject a site that exceeds the safe setup rather than improvising a taller stack or forcing the equipment beyond its intended use.
